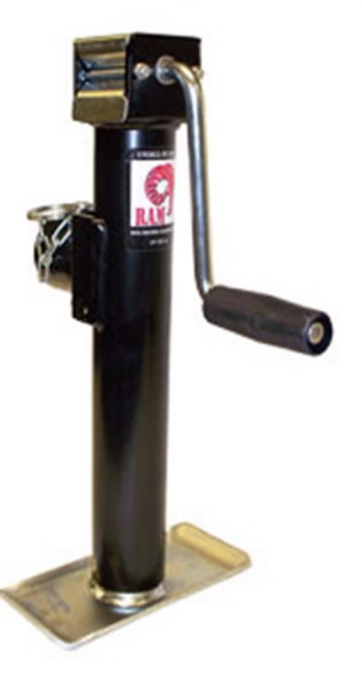

Reliable, heavy-duty lifting power for utility, equipment, and agricultural trailers. Engineered for smooth operation and long-lasting durability, this Ram 2,000 lbs pipe mount trailer jack features a side-wind crank handle and a swivel pipe-mount design. The 11.25" bracket height provides optimal ground clearance during travel, while the weld-on pipe sleeve allows the jack to easily pivot parallel to the frame when towing, preventing drag and damage on uneven terrain.
Key Features
-
2,000 lbs Lifting Capacity: Built to handle heavy tongue weights on utility trailers, livestock haulers, and agricultural equipment.
-
Swivel Pipe Mount Design: Weld-on pipe mount allows the jack to pivot up and out of the way during transport, maximizing ground clearance.
-
10-Inch Vertical Travel: Delivers 10 inches of smooth lift range to easily align trailer couplers with your tow vehicle hitch ball.
-
Ergonomic Side-Wind Handle: Smooth-cranking side-wind mechanism provides maximum leverage with minimal physical effort.
-
Heavy-Duty Steel Construction: Durable steel body with a protective black powder-coated outer tube and zinc-plated inner tube for rust and corrosion resistance.
-
11.25" Retracted Bracket Height: Offers ideal mounting height for low to mid-clearance trailer frames.
Product Specifications
-
Brand: Ram
-
Product Type: Pipe Mount Swivel Trailer Jack
-
Lift Capacity: 2,000 lbs (2,000 lbs Support Capacity)
-
Handle Style: Side Wind
-
Travel / Lift Range: 10 Inches
-
Bracket Height (Retracted): 11.25 Inches
-
Bracket Height (Extended): 21.25 Inches
-
Mounting Style: Weld-On Pipe Mount (Pipe Sleeve Included)
-
Finish: Black Powder-Coated Outer Tube / Zinc Inner Tube
-
Recommended Applications: Utility Trailers, Ag Machinery, Equipment Flatbeds, and Cargo Haulers
