Dexter Hub Kit W/ 8 on 6.5" Bolt Pattern For 9,000 lb & 10,000lb GD Axles Manufactured Before 07/2009
Dexter hub kits come with some of your main components like the inner and outer bearings. There is no need to worry about the races as they are already pressed into the hub for you. You will also get the oil seal, oil cap and the wheel nuts for the hub. Hub includes 5/8" studs pressed in and a wheel retaining ring. This hub is designed for use with 9-10K GD axle spindles. Each hub has a capacity if 5,000 lbs. Spindle nut, spindle washer and drum are sold separately.
»This Hub kit is designed for 9-10K General Duty Dexter Axles made Before July of 2009 and 9K Dexter axles made after October 1989.

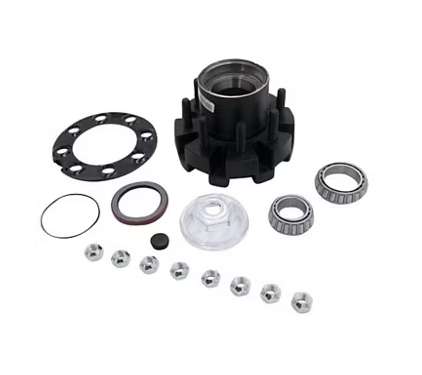

Kit Includes
- (1) 387A Inner Bearing – 2.250in ID
- (1) 25580 Outer Bearing – 1.750in ID
- (1) 25520 Outer Race – 3.265in OD (Pre-Installed)
- (1) 382A Inner Race – 3.813in OD (Pre-Installed)
- (1) 10-51 Oil Seal – 2.875in x 3.880in
- (1) 21-88 Oil Cap
- (1) 46-32 EZ Oil Cap Plug
- (8) 6-109 Coned Wheel Nuts
- (1) 33-52-1 Wheel Retaining Ring
- (1) 8 on 6.5in Hub Only
Product Specifications
- Brand: Dexter
- Product Type: Complete Hub Kit
- Hub Style: 865 Hub Pilot
- Lubrication Type: Oil Bath
- Capacity: 10,000 lbs Per Pair (5,000 lbs Per Hub)
- Bolt Pattern: 8 on 6.5in
- Drum Included: No – Drum Sold Separately
- Application: Heavy-duty trailer hub assemblies
