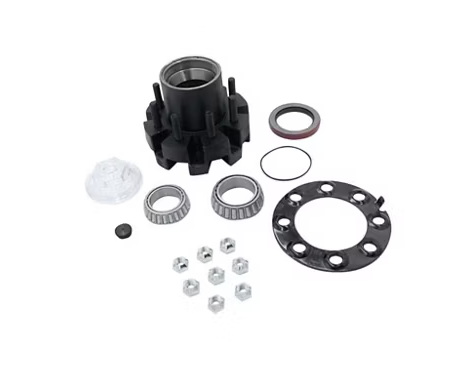

The Dexter 865 Complete Hub Kit provides the loose components needed to service a compatible Dexter 12K oil-bath axle using 3984 inner and 28682 outer bearings. Featuring an 8 on 6.5in bolt pattern and 6,000lb hub capacity, this kit includes the hub, bearings, oil seal, oil cap components, retaining ring, and 5/8in coned wheel nuts, with the bearing races already installed.
Features:
- Dexter 865 series hub kit
- Designed for compatible Dexter 12K axles
- 12,000lb capacity per pair
- Individual hub capacity: 6,000lb
- 8 on 6.5in bolt pattern
- Oil-bath lubrication system
- Compatible with drum brake applications
- Uses 3984 inner and 28682 outer bearings
- Bearing races come installed in the hub
- Includes oil seal, oil cap, plug, O-ring, retaining ring, and wheel nuts
- 5/8in coned wheel nuts included
- 12-1/4in x 5in brake drum sold separately
Kit Includes:
-
(1) 3984 Inner Bearing – 2.625in ID
-
(1) 28682 Outer Bearing – 2.25in ID
-
(1) 10-56 Oil Seal – 3.125in x 4.5in
- (1) 21-36 Oil Cap
- (1) 46-32 Oil Cap Plug
- (1) 10-50 O-Ring
- (1) 33-52-1 Wheel Retaining Ring
- (8) 6-109 5/8in Coned Wheel Nuts
-
(1) 8-214-8 Hub – 8 on 6.5in, 6,000lb Capacity
- Bearing Races Installed
