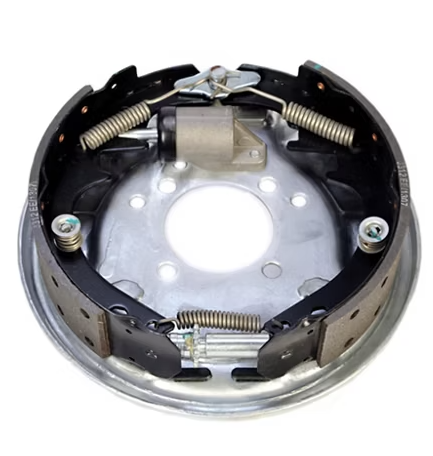

Upgrade or replace your trailer braking performance with marine-grade durability. Designed for axles rated up to 3,500 lbs per pair (1,750 lbs each), this 10" x 2-1/4" left-hand hydraulic trailer brake assembly features a single-servo drum setup with a corrosion-resistant gray galvanized finish. The protective coating makes it an ideal choice for boat trailers exposed to saltwater or high-moisture environments, while the standard 4-bolt mounting flange ensures straightforward bolt-on replacement for utility, cargo, and equipment haulers.
Key Features
-
Heavy-Duty Axle Rating: Designed for standard 3,500-lb capacity axle pairs (rated at 1,750 lbs per individual assembly).
-
Marine-Grade Galvanized Finish: Gray galvanized coating provides superior rust and corrosion defense for saltwater boat trailers and harsh weather conditions.
-
Single-Servo Hydraulic Actuation: Provides smooth, reliable stopping power when connected to a standard trailer surge brake system.
-
Manual Adjustment Design: Built-in manual adjusters allow simple periodic shoe adjustments for consistent lining contact and even wear.
-
Universal 4-Bolt Mounting Flange: Features standard 4-hole mounting patterns for quick, direct replacement on compatible trailer axle flanges.
-
Left-Hand (Driver Side) Specific: Engineered specifically for left-side trailer brake mounting.
Product Specifications
-
Product Type: Trailer Hydraulic Drum Brake Assembly
-
Side: Left Side (Driver Side)
-
Dimensions: 10" Diameter x 2-1/4" Wide
-
Axle Capacity: 3,500 lbs per pair (1,750 lbs per brake)
-
Brake Style: Hydraulic (Single-Servo)
-
Adjustment Type: Manual Adjust
-
Mounting Pattern: Standard 4-Bolt Flange
-
Finish: Gray Galvanized (Corrosion Resistant)
-
Packaging: Bulk
-
Recommended Applications: Boat Trailers, Utility Trailers, Equipment Haulers, and Saltwater / High-Moisture Towing
