Product Description

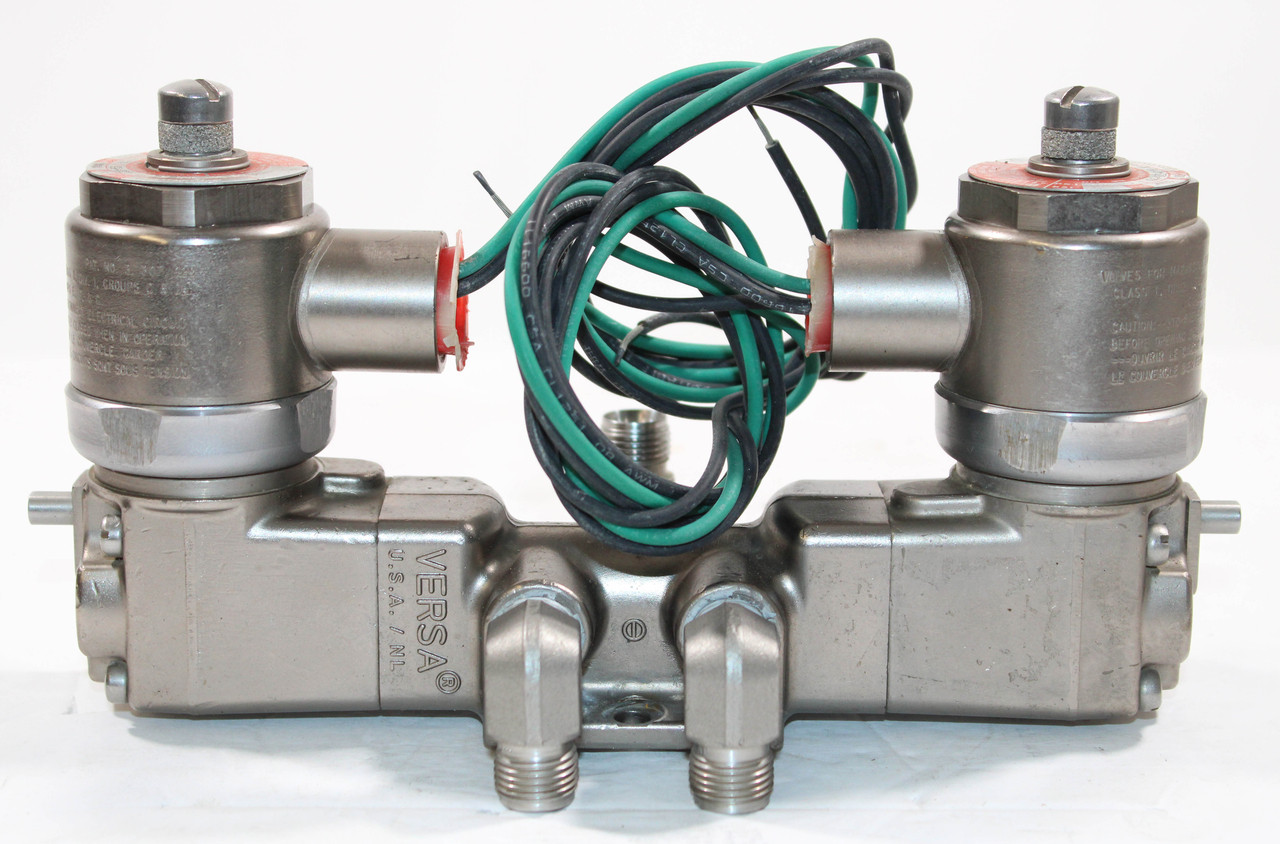

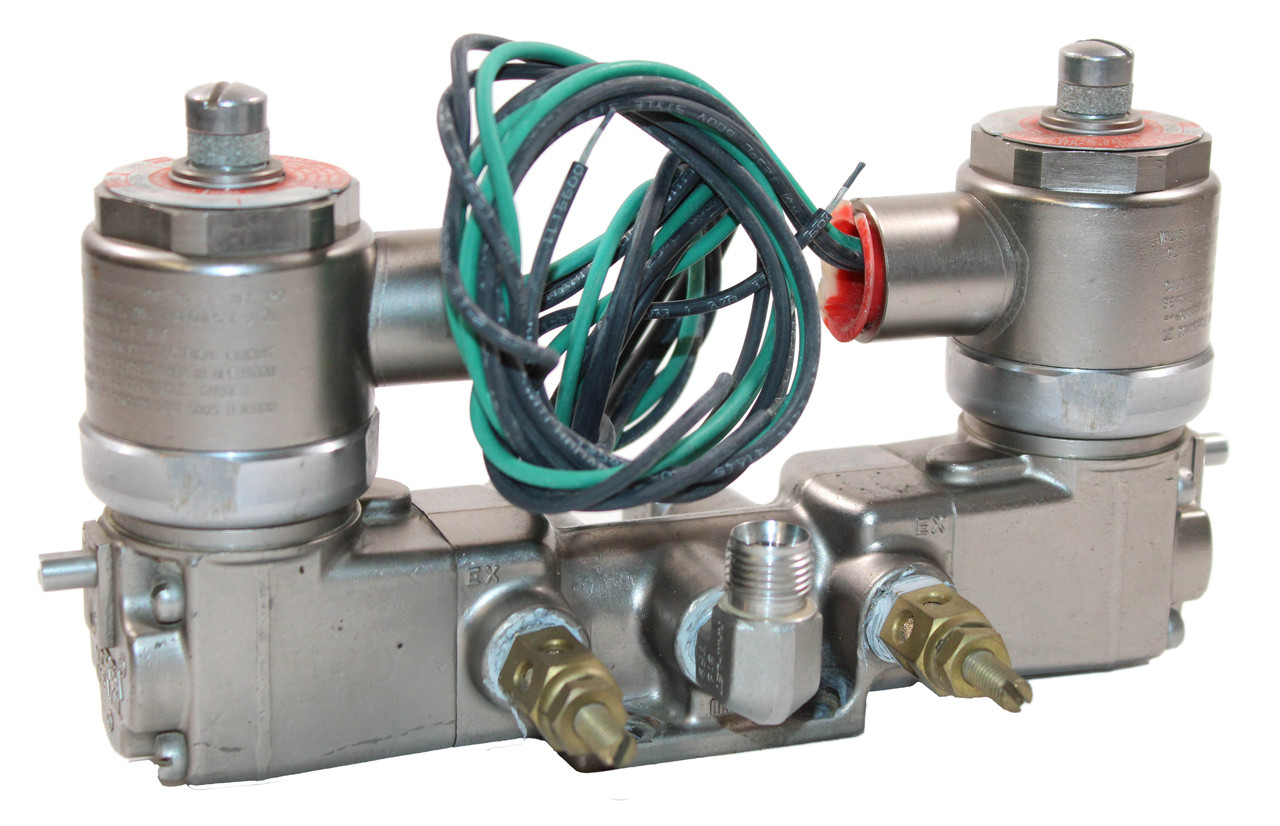

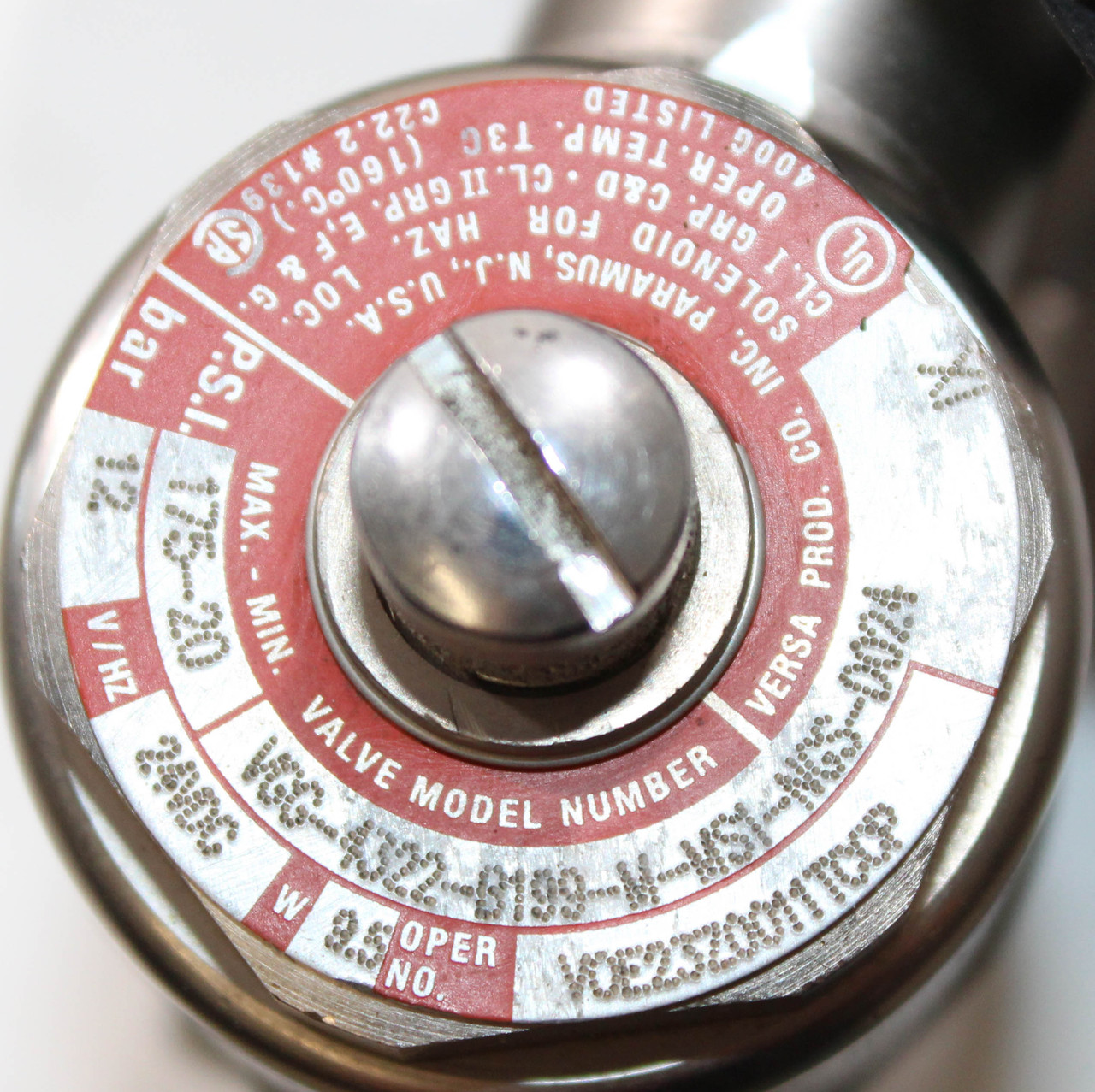

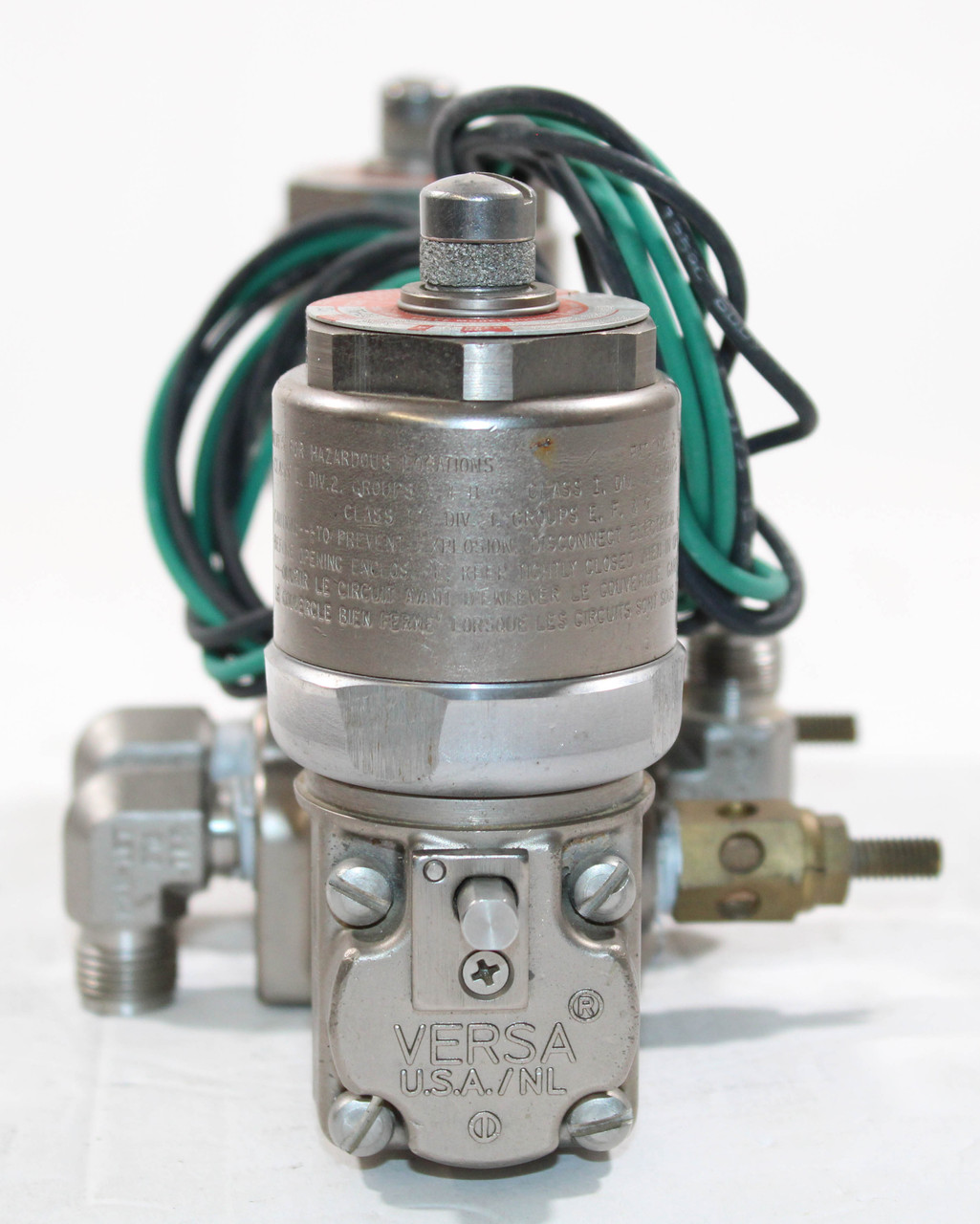

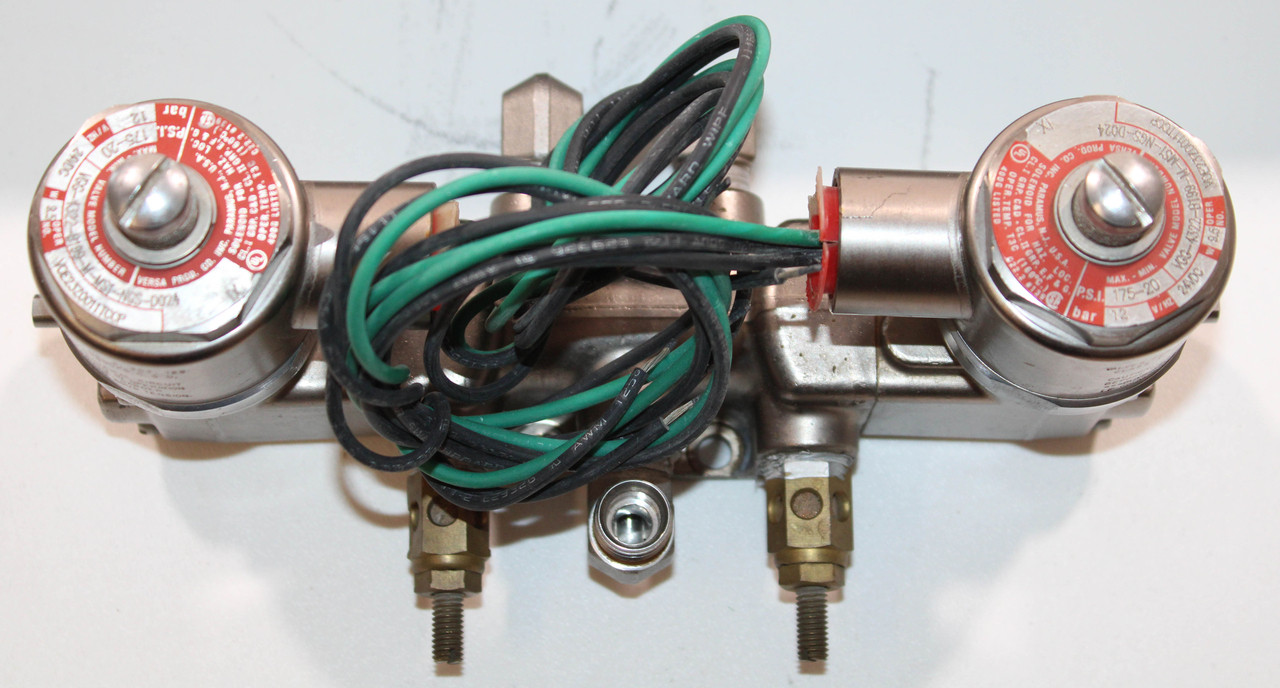

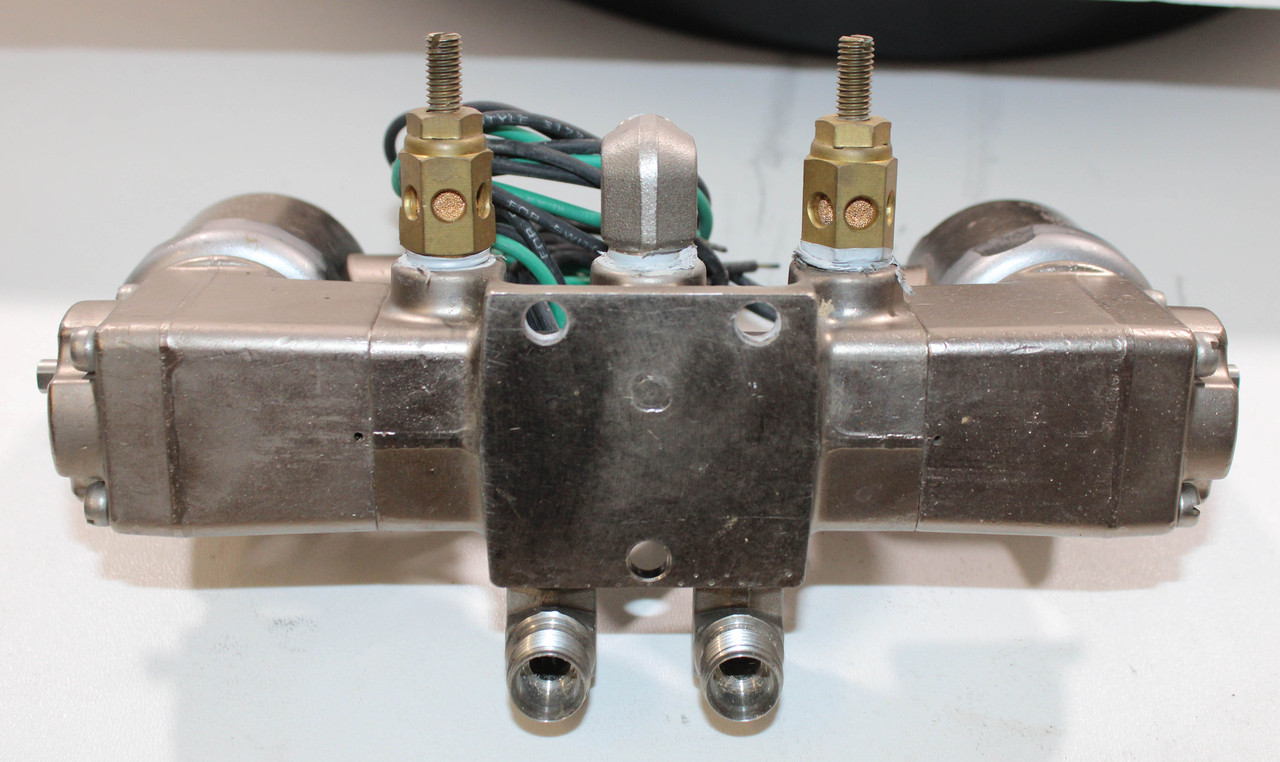

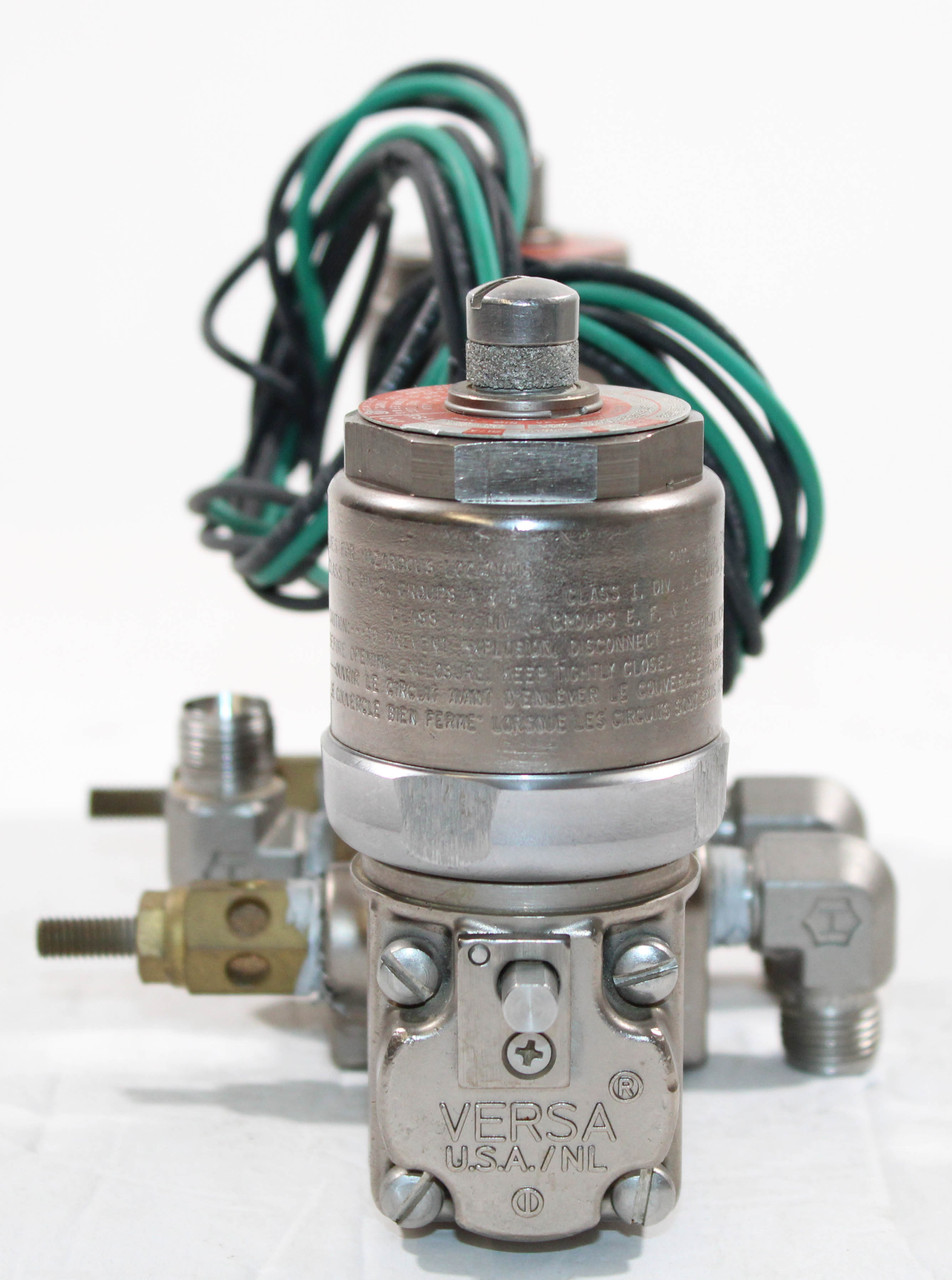

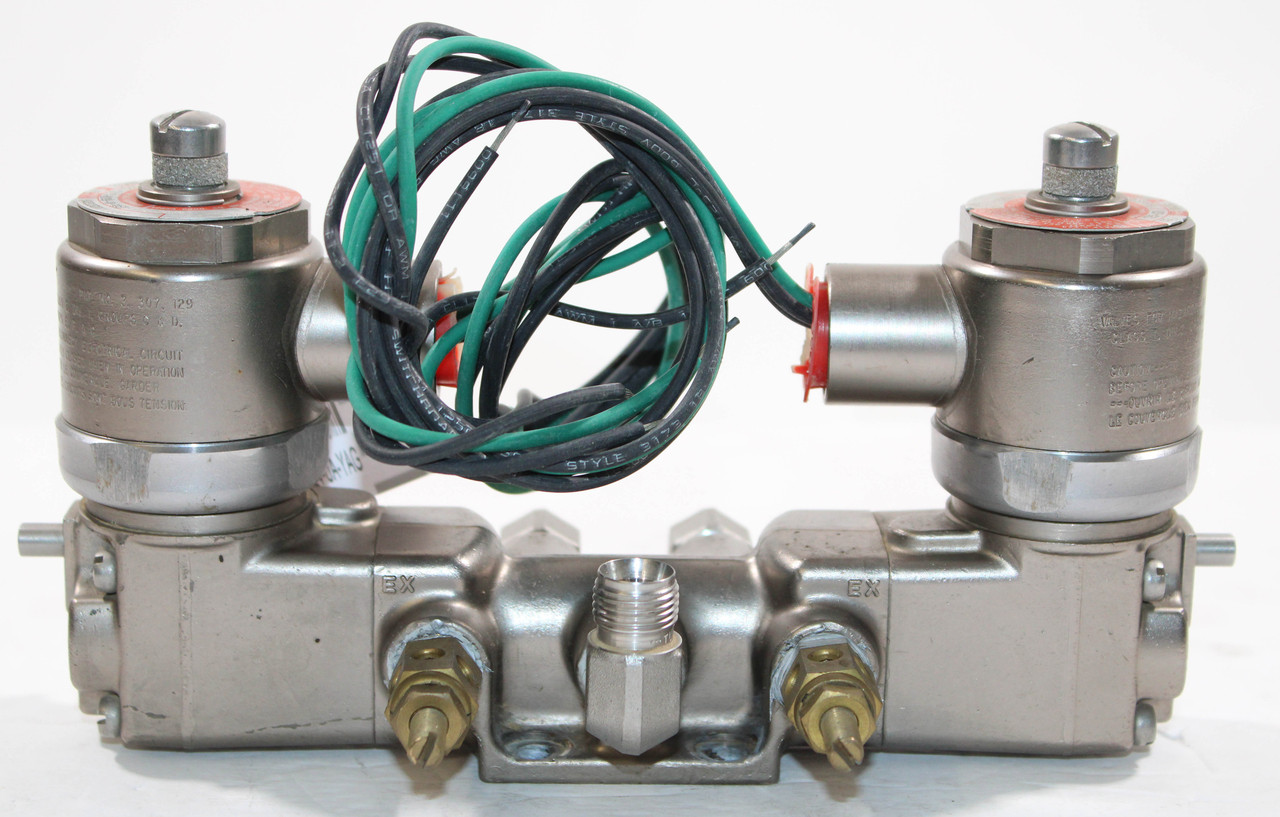

Versa VGG-4322-B199-M-MS1-NGS-D024 ValveActuation: Double Solenoid Port
Function: 4-Way, 2 Position
Port Size: 1/4 Inch NPT
PSI: 20-175
Bar: 12
V/Hz: 24VDC
Watts: 3.5
Material: Stainless Steel
Seal Material: FKM
Solenoid Description: Hazloc- E5 Class
Inrush current: 320
Holding Current: 320
Resistance: 75
Ingress Protection Rating: NEMA 4X
Solenold Connection: 1/2" NPT female conduit with 24" wires
The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases.
VGG4322B199MMS1NGSD024-UA-YAG
