Product Description

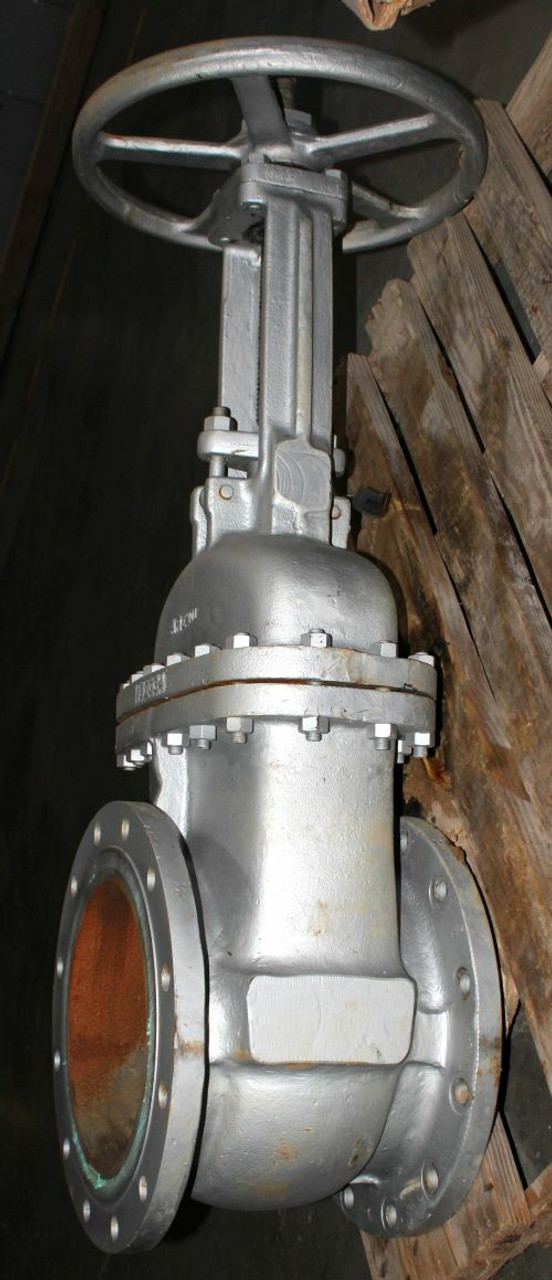

Gate ValveSize: 12 Inch
Material Type: A216-WCB
API Specifications: API 598, API 600, API B16.34
ASME Specifications: ASME B16.34
ASTM Specifications: ASTM A-216 Grade WCB
Collection: Figure 1503
End connection: Flanged
Flange Type: Raised Face
Pressure Class: 150#
Valve Body Material: Cast Carbon Steel
Valve Bonnet Type: Bolted
Valve Disc Material: CR 13
Valve Operator: Hand Wheel
Valve Port Opening: Standard Port
Valve Seat Material: Carbon Steel
Valve Stem: Outside
- Seat faces lapped for smooth finish and superior sealing
- Stems are non-rotating with surface finish to maximize packing seal for low fugitive emissions
- Bonnet and yoke arms designed for ease of gear, motor or cylinder actuator adaptation
- Each valve is shell, seat and backseat pressure tested per industry standard API 598
- Gland is two piece gland/gland flange design for optimal alignment and uniform packing compression
