Product Description

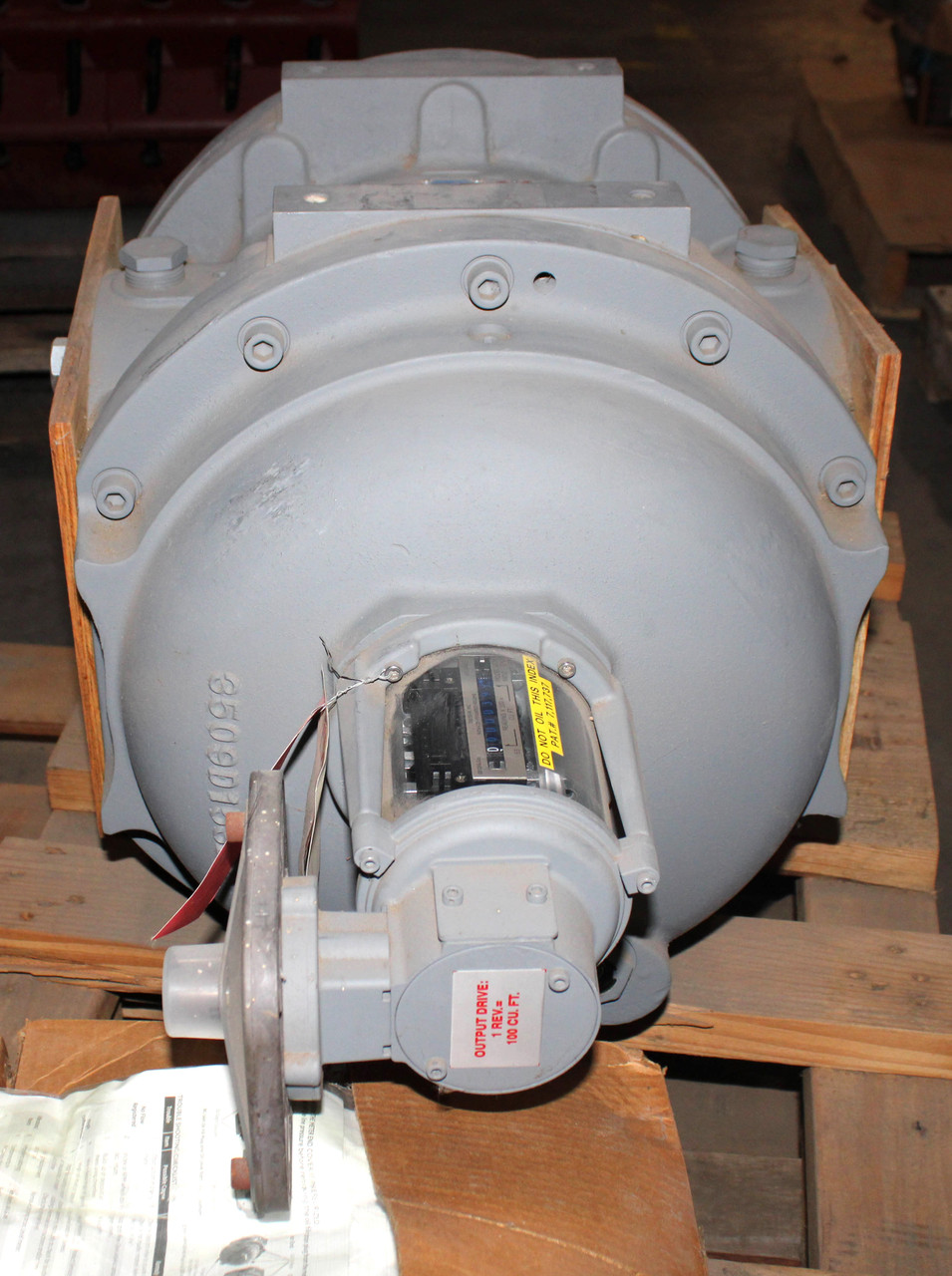

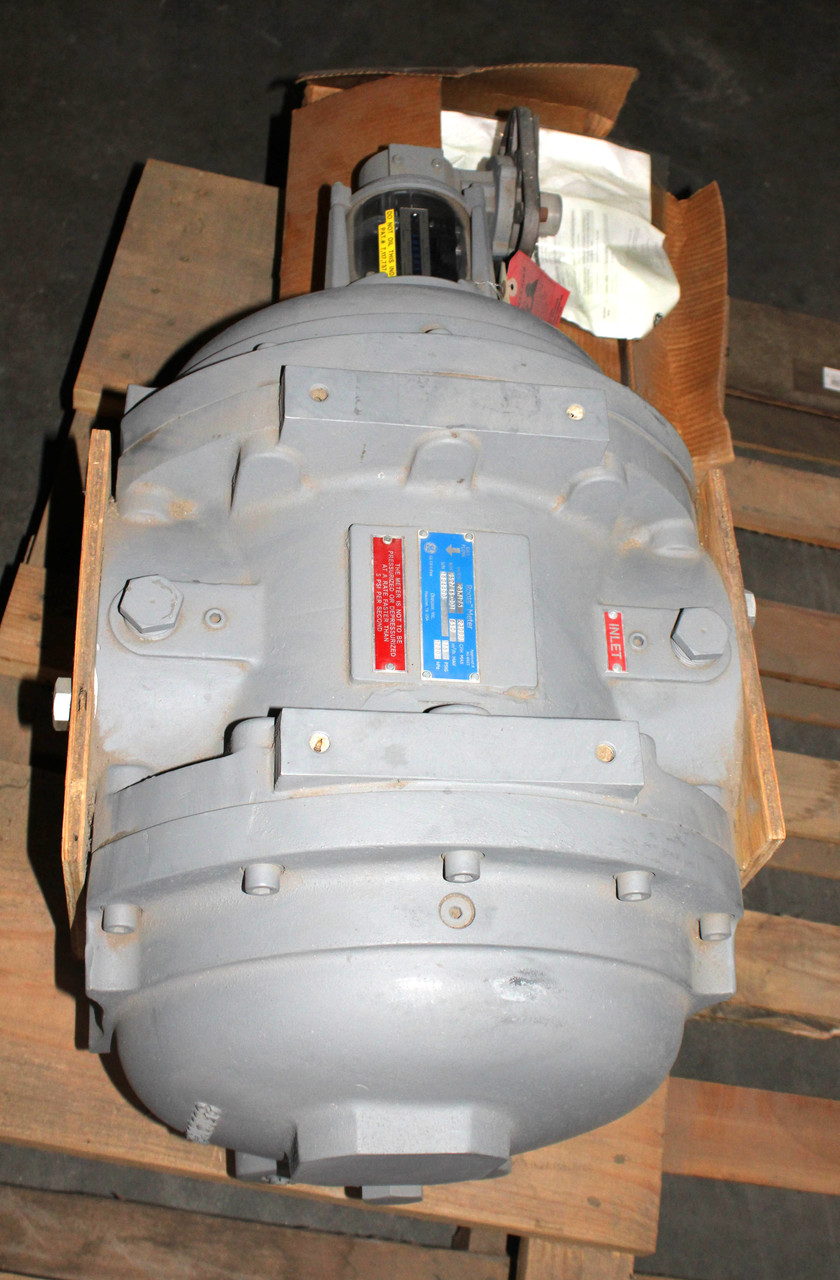

Dresser 23M175 Flanged Rotary MeterSize: 6 Inch ANSI 150# FF Flange
Max.Operating Pressure (MAOP): 175 psig
Max capacity : 23,000 CFH at .25 psi / 650 m3/h
B/M: 052716-001
S/N: 1604400
The Dresser Roots Series B3 23M175 Rotary Meter is designed to provide accurate gas measurement over widely fluctuating flow, pressure and temperature conditions. The standard CTR, non-compensated counter version offers an easy to read odometer style index.
23M175-N-YAG
