Product Description

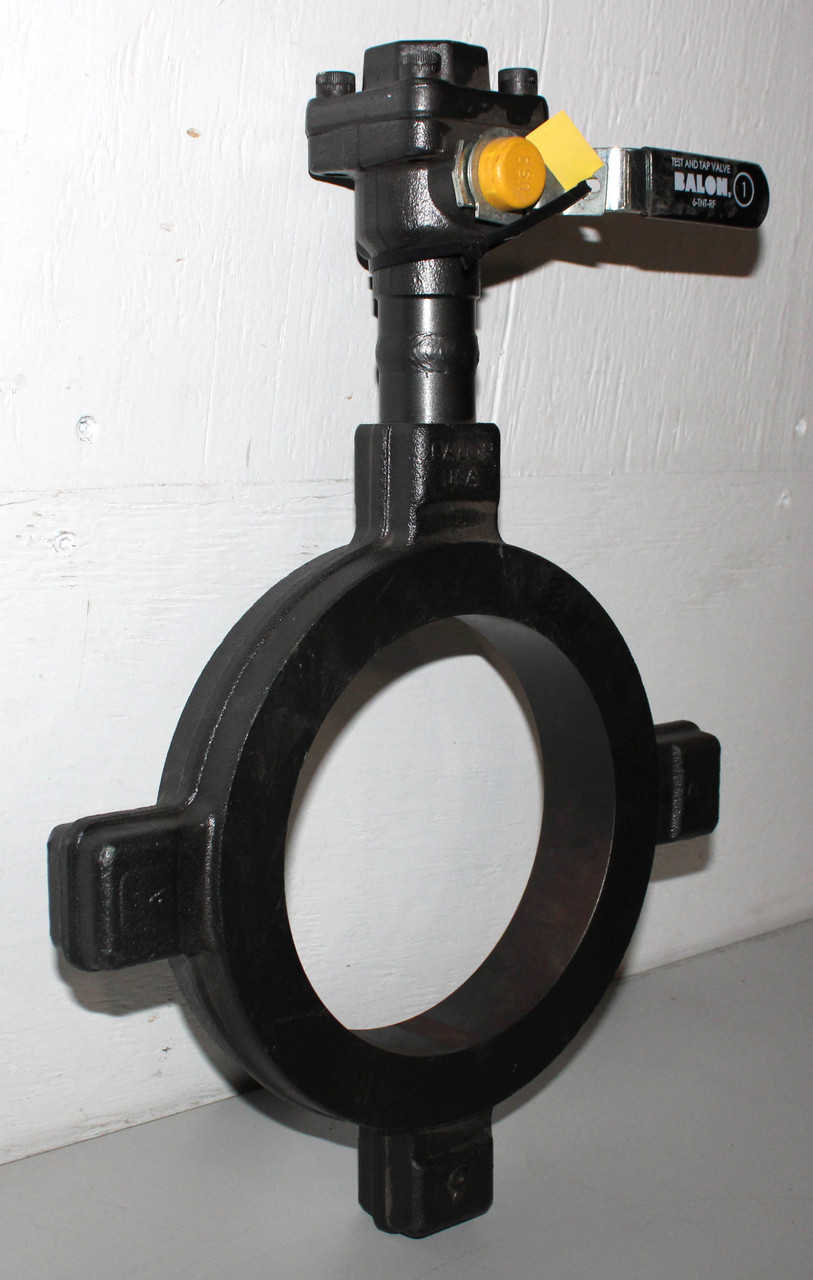

Balon 6-TNT-RF Test and Tap ValveSize: 6 Inch
| ITEM | PART NAME |
MATERIAL (NACE) |
|---|---|---|
| 1 | Weather Guard | Polyethylene |
| 2 | Stem Nut | Carbon Steel |
| 3 | Spacer | Carbon Steel |
| 4 | Lock Plate | Carbon Steel |
| 5 | Handle* | Carbon Steel |
| 6 | Stem Washer | Acetal |
| 7 | Stop Pin | Carbon Steel |
| 8 | Stem O-Ring | Fluorocarbon |
| 9 | Stem Seal | TFE |
| 10 | Stem | 316 Stainless Steel |
| 11 | Body | ASTM A350 LF2 CL1 |
| 12 | Seat | Nylon 11 (TFE Optional) |
| 13 | Ball | 316 Stainless Steel |
| 14 | Body O-Ring | Fluorocarbon |
| 15 | End Adapter | ASTM A350 LF2 CL1 |
| 16 | Body Bolts | ASTM A320 L7M |
092308-N-SAT
