Product Description

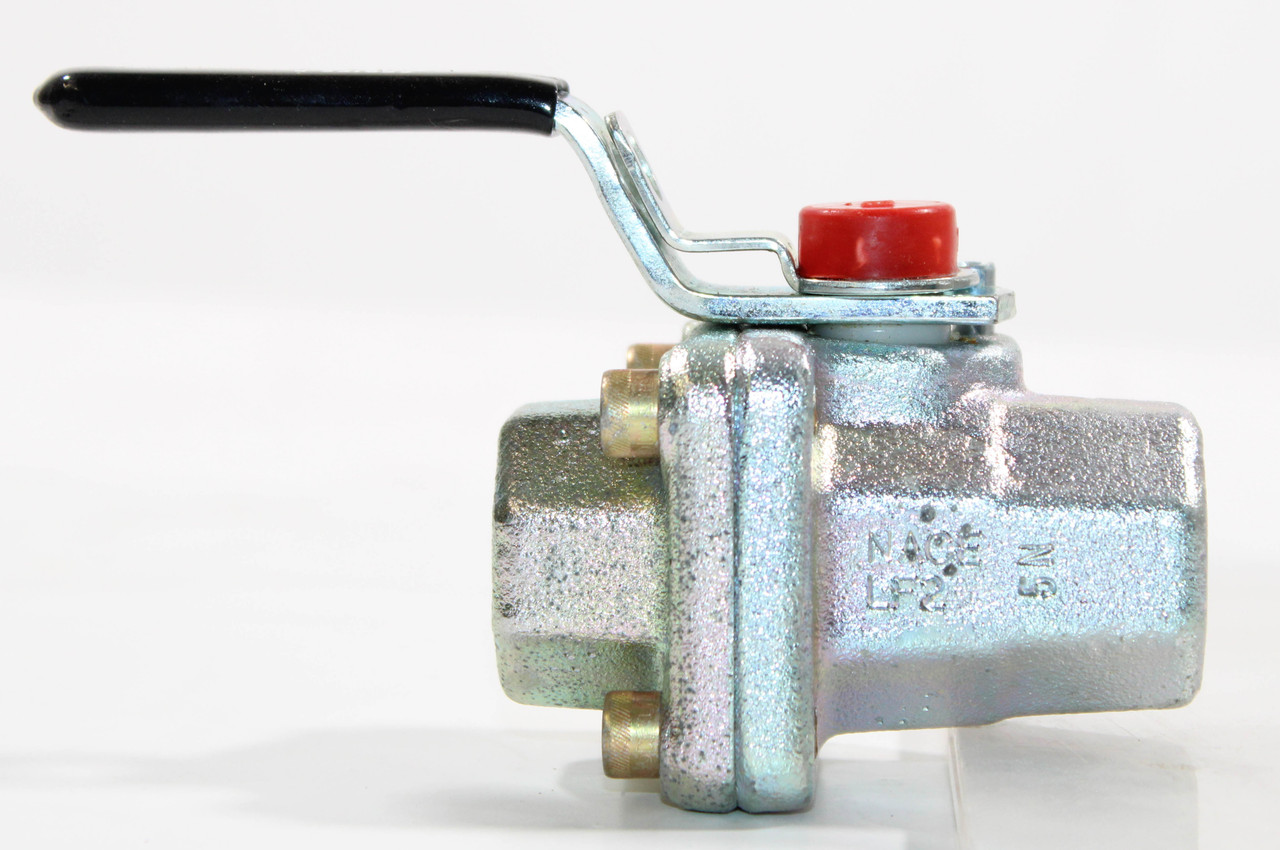

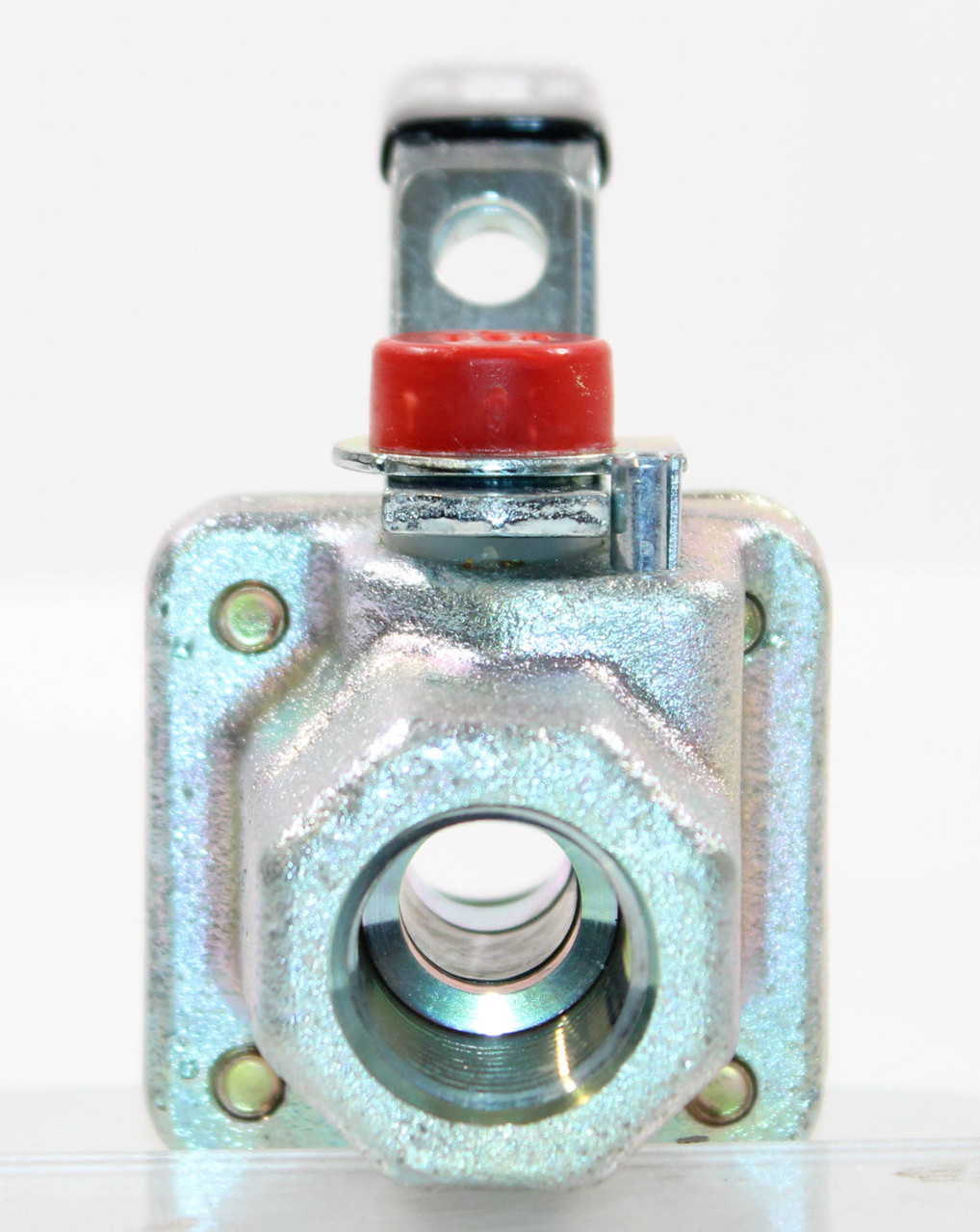

Balon 1/2F-F03N-SE Ball Valve| ITEM | PART NAME |
MATERIAL (NACE) |
||
|---|---|---|---|---|
| 1 | Handle* | Carbon Steel/Ductile Iron | ||
| 2 | Handle Bolt | Standard Hex Bolt | ||
| 3 | Weather Guard | Polyethylene | ||
| 4 | Lock Plate Retainer | Carbon Spring Steel | ||
| 5 | Lock Plate | Carbon Steel | ||
| 6 | Dust Cover | Polyethylene | ||
| 7 | Stop Plate Retainer | Carbon Spring Steel | ||
| 8 | Stop Plate | Carbon Steel | ||
| 9 | Stem O-Ring | Fluorocarbon | ||
| 10 | Stem Seal | TFE | ||
| 11 | Stem | 316 Stainless Steel | ||
| 12 | Ball | 316 Stainless Steel | ||
| 13 | Ball Seat | Nylon/Acetal (TFE Optional) | ||
| 14 | Body O-Ring | Fluorocarbon | ||
| 15 | End Adapter | ASTM A105, Normalized | ||
| 16 | Body | ASTM A105, Normalized | ||
| 17 | Body Bolts | ASTM A193 B7M |
12FF03NSE-N-YAG
